Uploading assets from the Mediabank AdEx application
This document provides a step by step guidance when delivering media files to Discovery Networks Norway.
Mediabank AdEx provides one of the most easygoing and reliable asset transfers in the market. You will be guided through the process with predefined forms to secure that mandatory information is provided and correct.

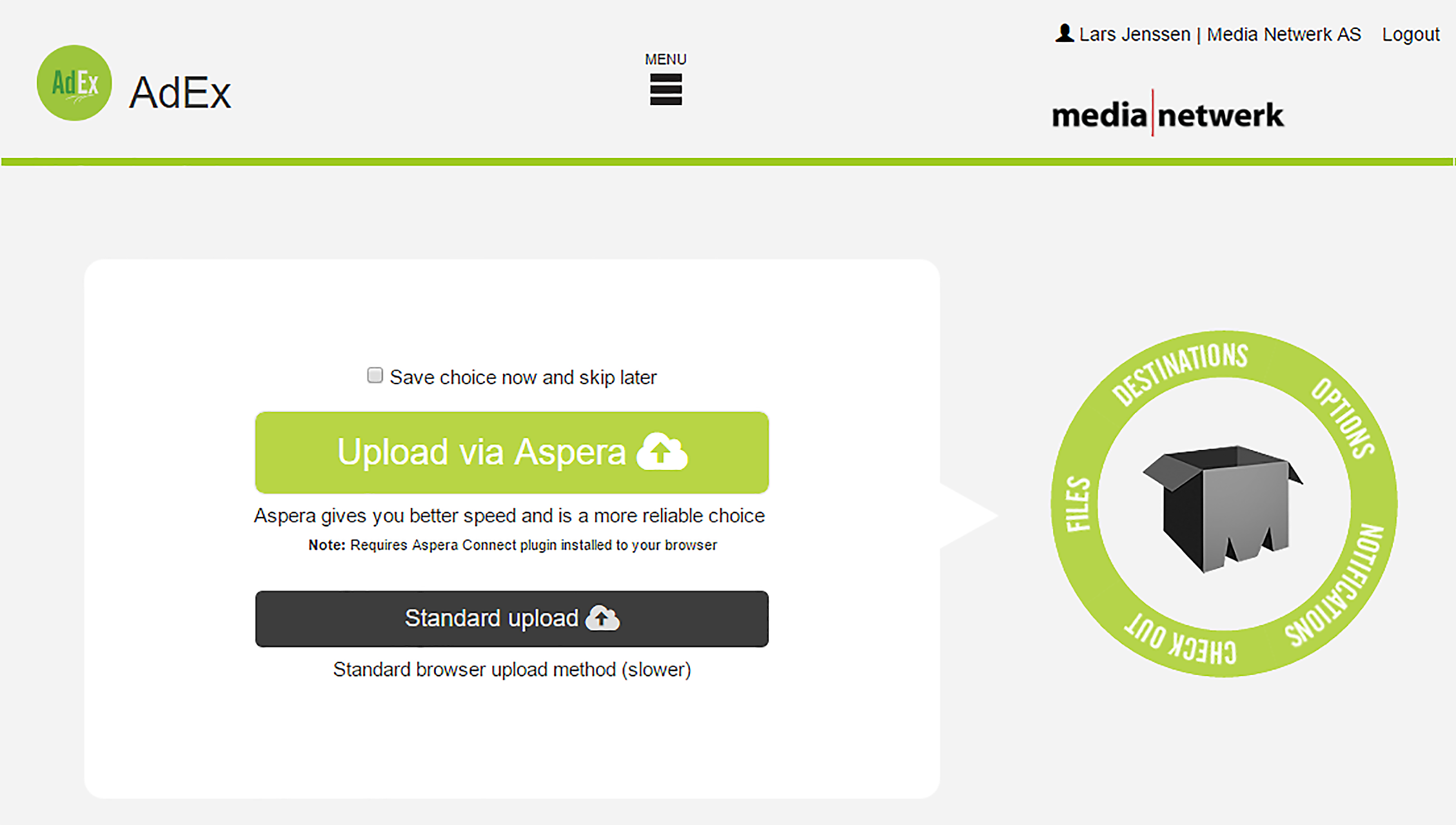

The above screen image shows the AdEx opening screen. You can choose between two options, Aspera upload and standard upload.
Upload with Aspera (Recommended)
This plugin secures your asset to be 100% error-free upon delivery, and it also uses advanced compression techniques to speed up the transfer.
By choosing this method, the AdEx application will check if the Aspera plugin is loaded and active. If yes, you will see the below message at the top of your screen.
If not present, you will be guided to the Aspera support site to download it.

Standard upload
By choosing this method, you use your standard file transfer functions in your browser.
If you get tired of selecting between the two options, you can click the button "Save choice now and skip later." Mediabank will then remember your choice and skip straight to the next screen, as shown below.
If you regret your transfer choice, you can get back to the opening screen by pressing: < Change upload method.

Deliver Broadcast Content

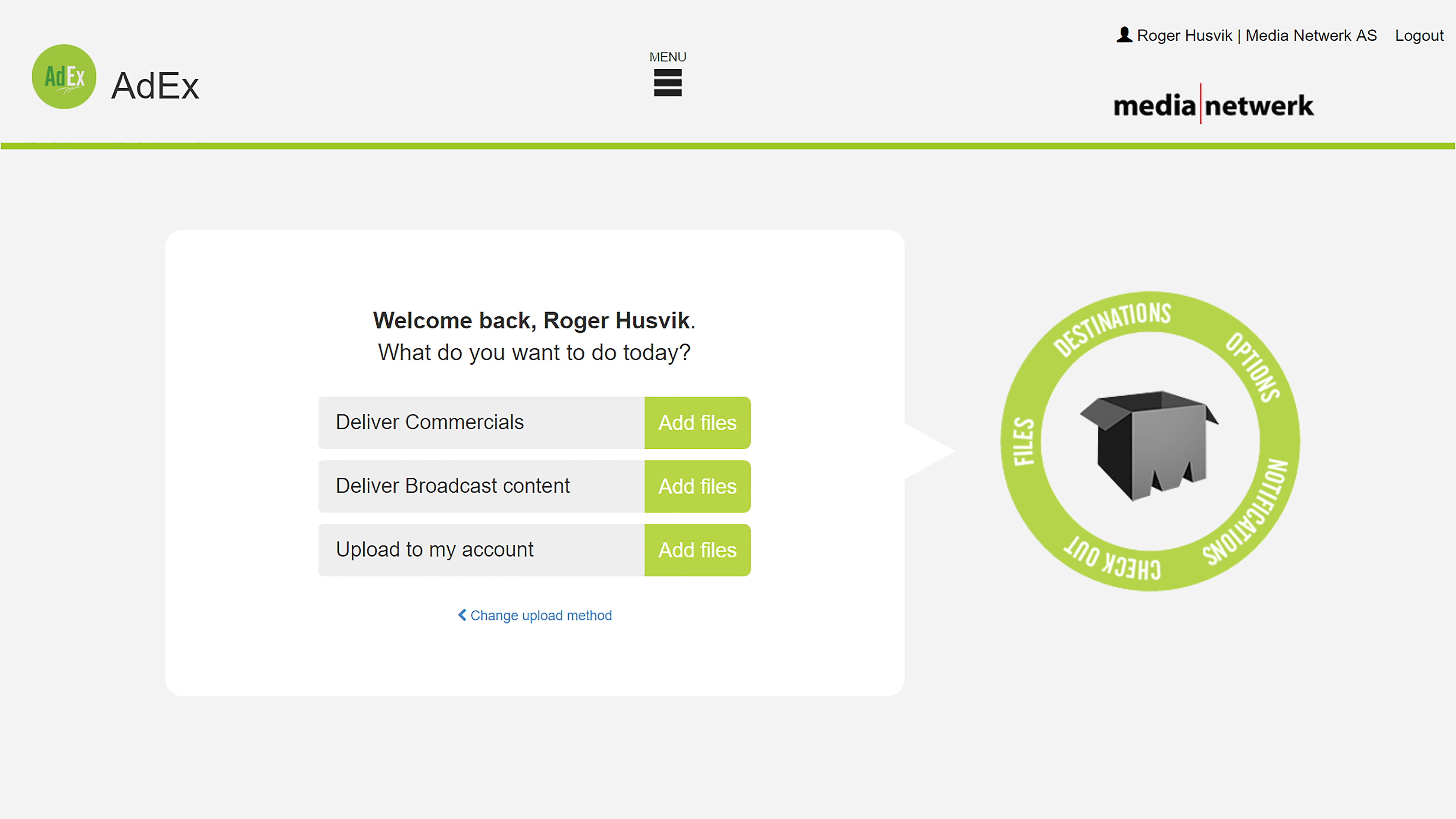

You are now looking at a similar image to the one below. And you already know that "Deliver Broadcast content" is the way to go. Click on the green area to the right with the text Add files.
Note!
The green wheel to the right is not documented since the input and selections are handled by the DNN selected schemes when delivering the broadcast content.
The green wheel to the right is not documented since the input and selections are handled by the DNN selected schemes when delivering the broadcast content.

After selecting your Media file(s) and have clicked on the green Add files button, you will see something similar to the below menu.

File: That is the name of your media file ready for upload, normally with MOV or MFX extensions. (In our case, the not-so-realistic example media file "KBU at night.jpg.")
Destination: Again, select Discovery Networks Norway since this is your destination.
Type: Selecting Discovery Networks Norway (hereafter described as DNN) provides five drop-down menu options.
- Press and Info Delivery
- Program Master
- Program Master Clean
- Promo Master Clean
- Review files
Media Id: You need to know your unique DNN media Id and fill it in here. This is mandatory, and without it, you will go nowhere. Your Media-Id is obtained from your project manager in DNN.
Tag: If you have filled in your correct Media Id, then the Tag field will open a whole new set of additional inputs fields for entering your metadata.
At this point, you can click on + Add more files to load them into the Upload queue or continue to fill in the TAG scheme for the present media file. If you have selected multiple media files for the same destination and the files share much of the same Metadata, you can check the box "Apply to all files" at the end of the first media file Tag scheme. All the other files will then be pre-filled with the first file metadata relieving you of the tedious identical schematic inputs. You must, however, go in and verify each media file Tag scheme to avoid false duplicates.
Occasionally, you select the wrong media file for upload, and you wish to remove it. Just click on the X all the way to the left of the file name, and it will be removed from the upload queue. The original media file is not deleted.

If you should try to speed up the transfer and bypass the TAG process by clicking on the CHECKOUT button, you will be prompted by a message like below.

The TAG input schemes
Clicking on the Tag entry will reveal all the input fields necessary to fill in before the media file is checked out and ready for upload.
You will probably see one of the below schemes in expanded view, dependent on the "Type" you selected. This document will focus on "Program Master." Check the heading In the upper left corner in the TAG scheme to secure you have the correct media file "Type." As you can see below, there are different schemes for each medial file type.
If not already expanded, click on the Media Information text to continue.
Media Information
Based on your obtained Media Id you attached to the media file, you will find the retrieved media information automatically filled in. Ensure that it is correct before you move on to the next step.
If you find the information contains errors, you should contact your local administrator before proceeding further.
If you feel a need to check the technical specifications, you can find the documentation here: DNN Delivery specs or click on the "Technical specifications" in the TAG scheme.
Depending on the specifications, the media file will undergo an automated technical control but even a manual control by the Mediabank managers.

General Information
Notification list:
Clicking on the Notification list will open a drop-down menu of available predefined lists. Select the list that contains the recipients you wish to notify.
There is no present need to select a list since the TAG scheme contains the relevant recipients by default.
You may read more about Notification lists here: Adex main menu.
Production Company:
The production company is responsible for production and delivery. They will also be the recipient of the invoice from this delivery.
Post Production Company:
Here you select the name from available post-production companies in the drop-down folder. It could also be the same as the Production Company.
Participants:
Enter the name of the participants in this program that is of interest to DNN. It is a required input, and the participants will be a part of the media files metadata.

Version Information
Fill in a description of this revision (version) vs. the previous revision. (Not technical information). You can expand the text area window by dragging the lower right corner down and/or right.
Subtitles
Spoken language.
Select from a drop-down menu for all spoken languages that need subtitling. Norwegian is already selected as default.
Comments for subtitling.
Additional information about subtitling can be entered here.
Distorted voice?
Check the box and enter additional information around the dialog in the distorted area.

Media Parts
Start of media: Is always 00:00:00:00
End of media: Are calculated from the time codes from Part 1 to Part #.
With additional 10 seconds black frames at the end of the media.
Part 1: Timecode always start 30 sec delayed
The total duration of parts HH:MM:SS:FF is the calculated time excluded all pre/post frames.
Normally you end your media parts with the last frame 24 (FF)
If the Media delivery contains more than one part, then fill in the media start details and the media's total end, including all video parts. Click "+ Add another" for each additional Media part.
Dplay Info
If the media asset is destined for the Dplay streaming service only, you must check this box.
Technical Comments
This is the place to write down any technicality issue, information about the delivery, or Media issues. It could also be that part of the media deliberately have very distorted colors or similar.
Press Done when ready, and that will take you back to the opening screen. Your TAG button contains a "checkmark," You are ready to click on the CHECKOUT button.
Pressing the CHECKOUT button will provide you with delivery information containing:
- Mediabank application: Mediabank AdEx
- Client: DNN
- Number of files: #
- The name of the file(s)
- Type: In this case, a MASTER
- Destination: Program Master
- The cost and VAT specified.
- Please read the terms & conditions and click inside its checkbox.
You still have an opportunity to make changes to your delivery by pressing "Go to Files," otherwise, click in the Confirm Checkout box, and you are done.
------------------------------------
